Since the cost of the fiber adapter is low and profit is limited so it is hard to provide customized service for small orders so we always suggest buyer consider customized label, customized packing, or laser Inscription on the housing and so on. But as for large qty, Begate also provides customized color, appointed material and white label, and so on. For some high-quality customized order, we also provide customized logo or identification on the SC adapter. And we always suggest our partner to consider high quality material, high precision inner structure and good technology first in OEM or ODM order but not consider the appearance only.
Applications Of SC APC Fiber Optical Adapter
1.Test equipments;
2. Active optical device connection;
3.Fiber optic jumper or pigtail connection
4.Production and testing ( end checking, insertion loss and return loss test)
5.Optical fiber communication system
6.LANs and WANs
7.FTTx ( FTTH, FTTB, FTTC and so on)
8. Patch panels, terminal boxes, fiber optical distribution box
Product Features of SC Simplex Fiber Optic Adapter
1, High precision and good matching;
2, High quality and environment friendly material;
3, Low insertion loss and high return loss;
4, With ceramic sleeve and ensure better performance;
5, Customized packing and label are available.
Parameters Of SC APC Optical Fiber Adapter
| Item | Parameter |
| Part Number | BG-AD-SA1SP |
| Fiber Type | Single mode |
| Specification | Fiber Adapter SC/APC SM SX Green |
| Housing Color | Green |
| Fiber Channel | Simplex |
| Body Material | Plastic |
| Sleeve Material | Ceramic(ZrO2) or customized |
| Test wavelength | 1310nm or 1550nm |
| Insertion Loss (IL) | Standard value <0.2dB, typical value <0.15dB) |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | Maximum change ≤0.20dB (500 mating) |
| Operating Temperature | -20ºC ~ +70ºC |
| Environment Temperature | -40ºC ~ +85ºC |

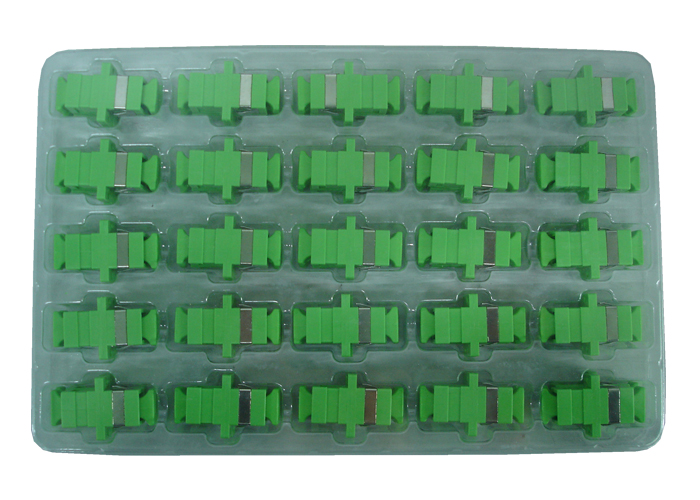

Reference Packing:

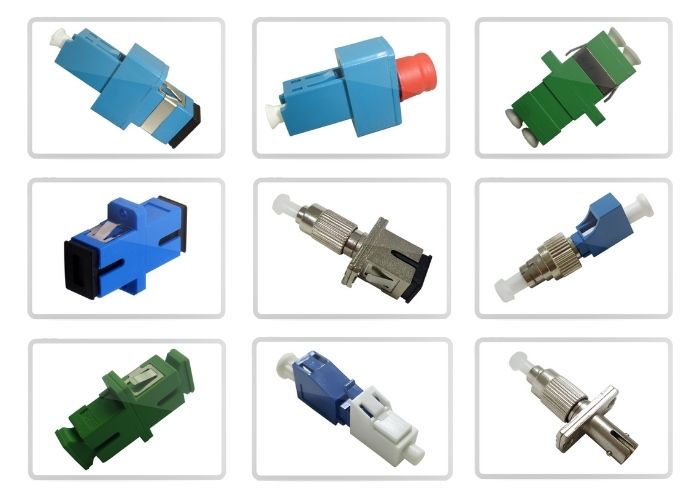

Similar Items:
Advantage of Begate
1, 6500m2 self-owned factory
2, Over 300 experienced workers
3, With 10 years’ R&D experience
4, Strict quality control and reliable quality (3 years warranty)
5, Complaint with industrial and international standards
6, High quality and competitive price
7, Real factory and fast delivery
8, OEM ODM customized service
9, Various shipping options
10, No MOQ limited, one piece is acceptable
11, Free sample available
12, Attentive and professional service
13, Fast response (standby at any time)
14, Outsourcing and drop shipping service are available
